Cixi BEILIGE Electric Appliance Co., Ltd. is a Fan Heater manufacturer working from the Guanhaiwei Industrial Zone in Cixi, China, and building ceramic electric heaters since 1981. Our range covers three production models — the FH09YL adjustable simulated 3D flame heater, the FH24/FH24-2 three-sides wind-out portable heater and the HFN-2021 waterproof freestanding heat fan — each built on a ceramic heating element, a forced-convection fan and thermostat-controlled output for household, hotel, office and bathroom heating programmes.
1981
Heater manufacturing base 50,000 m²
Factory area, 20 assembly lines 6,000,000
Units annual capacity 31–40
Quality control staff
A Ceramic Fan Heater Range for Volume Heating Programmes
All three models share the same working principle: a fan draws room air across a ceramic element and pushes warmed air out through a directed outlet, which raises room temperature faster than a heater relying on natural convection alone. The differences sit in airflow geometry, moisture protection, control interface and styling — the variables that decide which unit fits a programme, a retail line or a project specification.

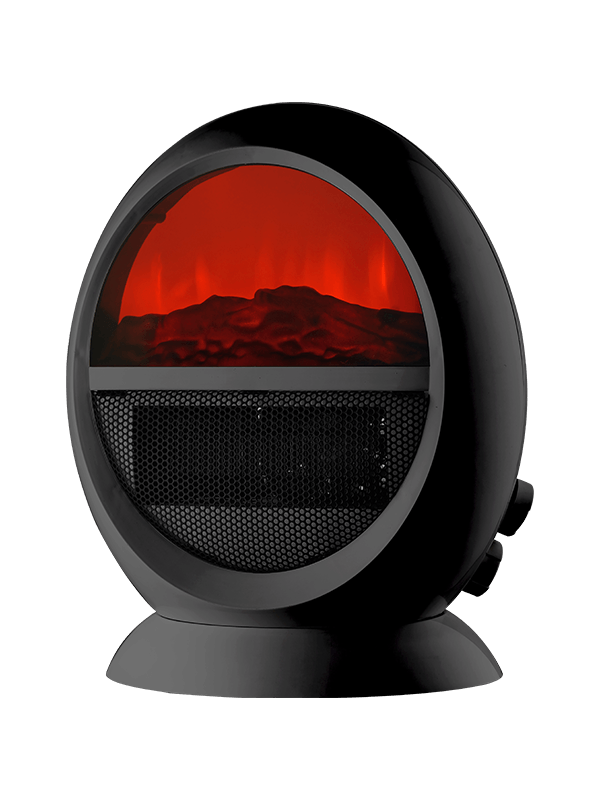

FH09YL Simulated 3D Flame Heater
An LED light-and-shadow flame panel combined with a heating element and intelligent temperature control. The heater is designed to stay visible in the interior, so it suits hotel rooms, lounges, restaurants and living spaces where the appliance contributes to the atmosphere.

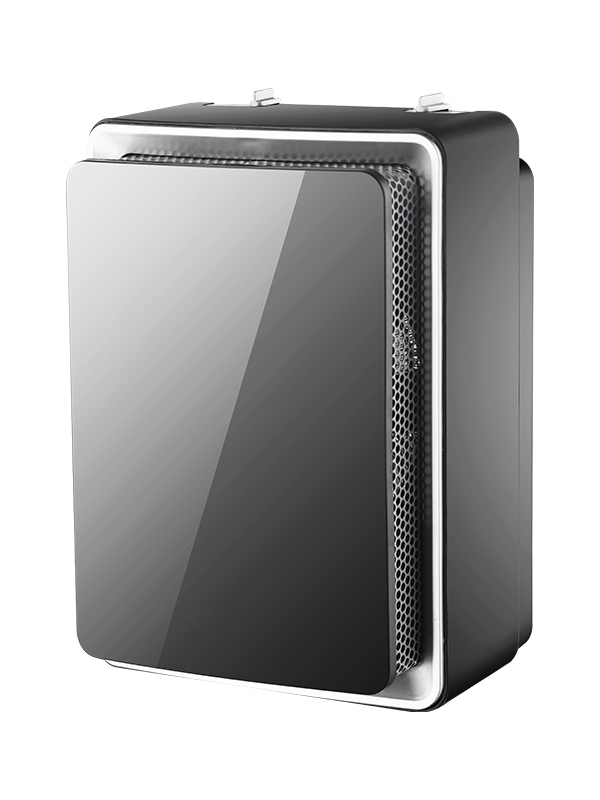

FH24 / FH24-2 Three-Sides Wind Out
Dual 1000 W / 2000 W settings, cool–warm–hot wind selection, adjustable thermostat, safety thermal fuse and an integral carry handle. The three-sided outlet spreads warm air across a wider arc, which is why it is the general-purpose residential model in our line.
HFN-2021 Waterproof Heat Fan
IP21 moisture protection, overheat protector, thermal cut-off device and a 360° tip-over power-off switch, with 1000 W / 2000 W output and an adjustable thermostat. Built for humid rooms and locations where the heater is moved between spaces.
Model Fit: Matching the Heater to the Application
| Model |
Power and control |
Airflow and housing |
Application fit |
| FH09YL |
Heating element with intelligent temperature control; LED simulated 3D flame |
Freestanding body with front flame viewing panel |
Hotel rooms, lounges, restaurants, living areas with a visible decorative heater |
| FH24 / FH24-2 |
1000 W / 2000 W, cool–warm–hot wind, adjustable thermostat, automatic temperature control |
Three-sides wind out, integral carry handle, power indicator light |
Bedrooms, living rooms and studies where even warm-air distribution matters |
| HFN-2021 |
1000 W / 2000 W, adjustable thermostat, overheat protector and thermal cut-off |
IP21 moisture protection, 360° tip-over power-off, freestanding housing |
Bathrooms and humid rooms, home offices, utility areas and covered semi-outdoor use |
The same ceramic platform also supports our Bathroom Fan Heater range and the wider portable PTC programmes, so a distribution customer can build a seasonal catalogue from one manufacturing source.
How Heating Performance Is Set
Output is determined by the element, the fan and the thermostat working together. Ceramic PTC material rises in resistance as it heats, so power input falls back as the element approaches its working temperature — a self-limiting behaviour that keeps surface temperature stable and avoids the run-away condition possible with bare resistance wire. The fan then decides how quickly that heat reaches the occupant rather than collecting around the grille.
- Heat settings on the FH24/FH24-2 and HFN-2021 are 1000 W and 2000 W, selectable at the control panel.
- The adjustable thermostat cycles output against the set point instead of running continuously, which holds room temperature within the working band.
- Cool, warm and hot wind modes on the FH24/FH24-2 allow fan-only air movement outside the heating season.
- Airflow direction is fixed by the outlet design — three-side distribution on the FH24/FH24-2, front outlet on the flame and freestanding models.
For sizing we work from room volume, insulation quality, glazing area, target temperature rise above ambient, air-change rate and ceiling height. A 2000 W setting behaves very differently in a 15 m² insulated bedroom and a 15 m² room with single glazing and two external walls, so those figures carry more weight than floor area alone in our proposal.
Safety Devices and Compliance Evidence
Safety hardware is specified per model rather than shared across the range. Overheat protection cuts the element supply when internal temperature passes the set threshold; the FH24/FH24-2 adds a built-in safety thermal fuse on the heating circuit; the HFN-2021 carries a 360° tip-over switch that removes power in any fall direction, plus IP21 protection against vertically falling water droplets for humid rooms.
Housing, grille and internal insulation are produced from fire-retardant and electrically insulating materials selected for high-temperature resistance and ageing performance. Our factory holds CE, CB, GS and EMC certification together with BSCI social compliance, and we confirm the certificate set that applies to each ordered model and destination market before production starts.
OEM/ODM Configuration and Customisation
Our R&D team of 5–10 engineers develops and produces against customer drawings or physical samples, which is how most private-label fan heater lines start with us. Minimum order quantity is 1000 units per model, and configuration is settled before tooling or production scheduling.
- Model selection and output setting per SKU, including mixed-model containers.
- Control panel layout, thermostat range and indicator arrangement.
- Colour box artwork, carton printing, rating label data and instruction manual language.
- Approved sample as the reference standard for production and pre-shipment inspection.
Packing and Container Loading
Each unit is packed in a printed colour box, then in an export carton with internal protection for sea, land or air freight. The figures below are single-model loading quantities; mixed containers are recalculated at order stage.
| Model |
Product size (mm) |
Colour box (mm) |
Pcs / carton |
Carton (mm) |
20' / 40' / 40HQ |
| FH24 / FH24-2 |
210 × 151 × 283 |
220 × 162 × 300 |
8 |
450 × 335 × 610 |
2440 / 5040 / 5600 |
| HFN-2021 |
230 × 155 × 240 |
240 × 170 × 245 |
6 |
530 × 255 × 510 |
2616 / 5280 / 5896 |
Quality Control from Incoming Parts to Routine Test
Our 31–40 quality staff run a six-stage chain: supplier selection and valuation, certified product testing, incoming parts control, process monitoring, product inspection and routine test. Injection moulding, punching, paint spraying and flexing equipment are held in-house, so housing and metal parts are controlled inside the same plant as assembly rather than bought loose on the open market.
Acceptance is agreed at order stage around the approved sample, the model specification sheet and the pre-shipment inspection checklist. Each unit carries a 1-year product warranty, and shipments include 1% free spare parts against the ordered quantity for service stock.
Information We Use to Configure Your Solution
- Room type, volume and moisture conditions, so we can confirm flame, three-sides or IP21 construction.
- Destination market and required mains voltage, plug type and approval mark.
- Preferred output setting, thermostat behaviour and control panel requirements.
- Required safety devices and the certification set to be confirmed per model.
- Packaging artwork, carton printing, label data and manual language.
- Order quantity per SKU, container plan and delivery terms.
Frequently Asked Questions
What is the minimum order quantity for a fan heater model?
MOQ is 1000 units per model, including the FH09YL flame heater, the FH24/FH24-2 and the HFN-2021. Mixed-model containers are quoted against the combined carton volume.
Can the HFN-2021 be used in a bathroom?
Yes. The HFN-2021 waterproof freestanding heat fan carries IP21 protection against vertically falling water droplets, together with a 360° tip-over power-off switch and thermal cut-off. It is a freestanding appliance and is not designed for immersion or direct water spray.
How do I choose between the FH24/FH24-2 and the flame model?
Choose the FH24/FH24-2 three-sides wind-out fan heater when even heat distribution and 1000 W / 2000 W selection are the priority in living spaces. Choose the FH09YL when the heater is part of the interior design and a simulated 3D flame effect is required alongside intelligent temperature control.
Which certifications apply to your fan heaters?
Our factory holds CE, CB, GS and EMC certification and BSCI social compliance. We confirm which certificates and test documentation apply to the specific model, voltage and destination market during configuration.
Can you produce the heaters under our own brand?
Yes. Our R&D team develops products from customer drawings or samples, with private-label colour boxes, carton printing, rating labels and manual language agreed before production begins.
What warranty and spare parts come with an order?
Every fan heater carries a 1-year product warranty, and orders ship with 1% free spare parts against the ordered quantity so distributors can support installations from local stock.
